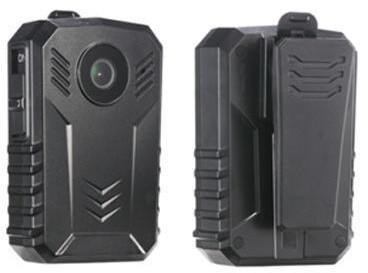

EH16 Body Worn Camera

EH16 Body Worn Camera Specification

License Free
Yes

Operating Mode
Continuous, Standby, Motion Activated

Antenna Type
Internal

Interface
Mini USB 2.0, HDMI

Connectivity Type
USB, Wi-Fi

Frequency Band
2.4GHz / 5GHz

Size
78 x 57 x 26 mm

Warranty
1 year

Mounting Type
Clip-on, Magnetic Mount

Channel Spacing
25 kHz

Standard
IP66 Waterproof, MIL-STD-810G

Transmission Power
Up to 100m wireless

Technology
4G LTE, Wi-Fi, Bluetooth

Special Features
Night Vision, GPS, Motion Detection, Pre-event Recording

Remote Control
Supported via Mobile App

Application
Law Enforcement, Security, Emergency Services

Camera Size
16MP CMOS Sensor

Screen Resolution
2.0 inch LCD, 320x240 pixels

Power Supply
Built-in 3200mAh Rechargeable Lithium Battery

Output Formats
MP4, JPEG

Battery Life
Up to 10 hours continuous recording

Audio Recording
Integrated Microphone, Noise Reduction

Weight
130g

Drop Resistance
2 meters

Video Resolution
1080p FHD (1920x1080), 720p HD (1280x720)

Storage Capacity
32GB / 64GB / 128GB Internal Storage

Operating Temperature
-20°C to +60°C

EH16 Body Worn Camera Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash in Advance (CID), Cash Advance (CA)

Supply Ability
2000 Pieces Per Month

Delivery Time
7 Days

Main Export Market(s)
South America, Western Europe, Australia, North America, Eastern Europe, Middle East, Asia, Central America, Africa

Main Domestic Market
All India

Certifications
CE Certificate

About EH16 Body Worn Camera

EH16 Body Worn Camera

Model	EH16 Body Worn Camera
size	85 mm 55 mm 23mm
sensor	5MP CMOS
chipset	Ambarella A7LA50
Video Resolution	Multiple Recording Resolution 2304x1296 30p/ 1920x1080 30p/1280x720 60p /1280x720 30p /848x480 60p 16:9
Video Format	H.264 .AVI/MPEG4
button	One button slide up and down
Water Mark	User ID, Time and date Stamp embedded into Video.
Camera	21 Megapixel Camera option with optional burst shot
Recording Time	Continuous recording time: 600 minutes (battery full charged, IR closed,resolution ratio 640*480)
Storage Capacity	16G(32G/64G)
One Button Recording	Support One Button Record
Language	Chinese/English/Others(OEM)
VIDEO/IMAGE REVIEW
Video Transfer	USB 2.0
CAMERA
Recording Angle	Wide Angle 140 degrees
Night Vision	Up to 10 Meters with Visible Face Detection
Waterproof	IP67
Clip	High Quality Metal Clip with 360 degrees Rotation
BATTERY
Type	Built-in 2800mAH Lithium
Charging Time	180 minutes
Battery Life	11 Hours
Battery Level	Visual Indicator
OTHERS
Unique ID number/unit	Include 5 digit device ID and 6 digit police ID
Password protect	To set an administrator password to allow deletion via software. User can only view the videos but cannot delete it.
Dimension	85 mm 55 mm 23mm
Weight	135g (4.76oz)
Working Temperature	-40~60 degrees Celsius
Storage temperature	-20~55 degrees Celsius
ACCESSORIES
Standard Accessories	USB cable, Charger, Manual, Driver CD, Universal metal clip, Vehicle mounting

Crystal Clear Video and Audio

The EH16 Body Worn Camera delivers high-definition recordings, offering both 1080p FHD and 720p HD to ensure every detail is captured. Equipped with an integrated microphone and advanced noise reduction technology, audio is clear and reliable, making incident documentation accurate and comprehensive.

Rugged Reliability And Long-Lasting Power

Designed for challenging environments, the EH16 withstands drops up to 2 meters and operates from -20C to +60C. Its IP66 waterproof rating and MIL-STD-810G certification provide peace of mind in any situation. The built-in 3200mAh battery grants up to 10 hours of continuous recording, minimizing downtime during critical operations.

Advanced Features for Professional Use

Night vision, GPS tracking, motion detection, and pre-event recording enhance operational effectiveness and security. Robust storage (up to 128GB) and multiple connectivity optionsincluding 4G LTE, Wi-Fi, and Bluetoothaid in seamless data transfer and remote device control via a mobile app, facilitating real-time coordination and footage review.

FAQs of EH16 Body Worn Camera:

Q: How do I transfer recorded video and audio files from the EH16 Body Worn Camera?

A: You can easily transfer video and audio files from the EH16 using its Mini USB 2.0 port, HDMI interface, or wirelessly through Wi-Fi and 4G LTE connections. Simply connect the camera to your computer or use the mobile app for remote access and management of footage.

Q: What storage capacity options are available, and how much recording time do these provide?

A: The EH16 offers 32GB, 64GB, and 128GB internal storage options. For example, the largest 128GB model can store extensive recordings, offering numerous hours of high-resolution video, ideal for long shifts or multiple days of usage without needing to offload files frequently.

Q: When should the night vision feature be used, and how does it benefit users?

A: The night vision function should be activated in low-light or nighttime environments. This feature enables clear video capture in darkness, significantly enhancing security and evidence gathering capabilities during nighttime operations or poorly lit situations.

Q: Where can the EH16 Body Worn Camera be securely mounted during use?

A: This camera offers flexible mounting options, including clip-on and magnetic mounts. Users can attach the EH16 to uniforms, vests, or belts, ensuring the camera remains securely in place under vigorous movement or harsh conditions.

Q: What process is involved in remotely controlling the EH16 camera?

A: The EH16 supports remote control via a dedicated mobile app, enabling users to start or stop recordings, adjust settings, and review footage in real time. This process facilitates convenient management and monitoring, especially in field operations or team deployments.

Q: How does motion detection and pre-event recording enhance incident documentation?

A: Motion detection ensures the camera automatically begins recording when activity is sensed, while pre-event recording captures footage moments before an event is triggered. Together, these features ensure crucial incidents are never missed, providing comprehensive context and evidence.
