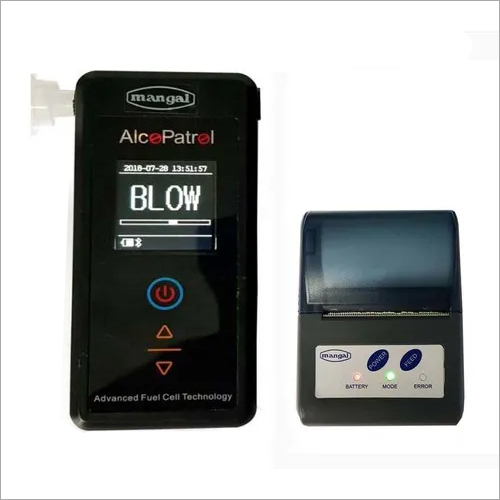

Alcohol Breath Analyzer Pt100p
MANGAL ALCOPATROL ,BREATH ANALYSER
is fuel cell based and designed for professional use, It is a handheld Instrument preliminary to determine a subjects breath alcohol level quickly and precisely.
1. Quick and Precise Analysis: 32-bit embedded processor secures high performance of the system.
2. UK made Electro chemical/Fuel cell Sensor: Highly specificity to alcohol, unaffected by other possible breath contaminants.
3. Data Handling Ability: Compact gas circuit design and advanced analysis process assure fast, accurate and stable testing performance.
4. Power Supply: Built-in Li-ion battery reliable and long-time testing action.
5.Memory Capacity: Data storage of 2000 test results. Any test results can be downloaded to PC.
6.After Sales Service: Independent intellectual property rights integrated with research, development and production ability guarantee strong after-sales service.
Sensor Type - Advance platinum electro chemical fuel cell, alcohol specific
Detection range - 0.000-2.000 mg/Litre BrAC
Accuracy - 0.015 mg/Litre
Resolution - 0.0001 mg/L
Working Environment - ¯¼10¾55
Measuring temperature - 20¾70
Display - 128”64 dot matrix black and white screen
95% No dews
3.5 second(breath flow°0L/min)
Less than 5 seconds after switching on
Rechargeable 1000mAh/3.7V Li-ion
115g (including batteries)
Low battery indication Real time clock and temperature display customer
