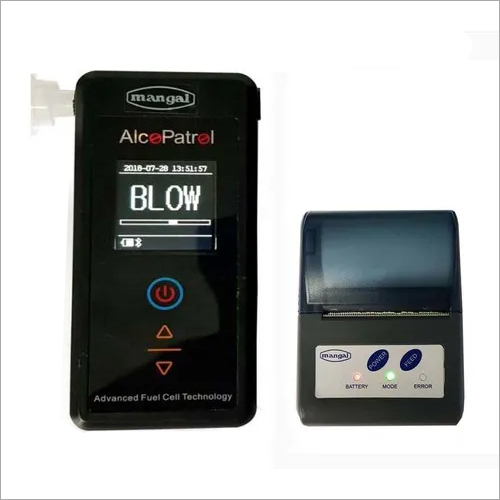

Alcohol Breath Analyzer PT100p

Alcohol Breath Analyzer PT100p
Alcohol Breath Analyzer PT100p
Send Inquiry
Product Code : PT100p
Brand Name : Mangal
Product Description

MANGAL ALCOPATROL ,BREATH ANALYSER

is fuel cell based and designed for professional use, It is a handheld Instrument preliminary to determine a subject’s breath alcohol level quickly and precisely.
Specifications
1. Quick and Precise Analysis: 32-bit embedded processor secures high performance of the system.
2. UK made Electrochemical/Fuel cell Sensor: Highly specificity to alcohol, unaffected by other possible breath contaminants.
3. Data Handling Ability: Compact gas circuit design and advanced analysis process assure fast, accurate and stable testing performance.
4. Power Supply: Built-in Li-ion battery reliable and long-time testing action.
5.Memory Capacity: Data storage of 2000 test results. Any test results can be downloaded to PC.
6.After Sales Service: Independent intellectual property rights integrated with research, development and production ability guarantee strong after-sales service.
Device Features:
Sensor Type - Advance platinum electro chemical fuel cell, alcohol specific
Detection range - 0.000-2.000 mg/Litre BrAC
Accuracy - 0.015 mg/Litre
Resolution - 0.0001 mg/L
Working Environment - ï¼10℃~55℃
Measuring temperature - ï¼20℃~70℃
Display - 128×64 dot matrix black and white screen
Memory
2000 memory
Pressure:
86kPa~106kPa,
Relative Humidity
95% No dews
Response time
3.5 second(breath flow≥20L/min)
Warm-up Time
Less than 5 seconds after switching on
Resume Time
15 seconds
Dimensions
Approx. 127mm×60mm×28mm
Working Voltage
DC 3.6~4.2V
Working Current
50 mA
Battery Built-in
Rechargeable 1000mAh/3.7V Li-ion
Weight Approx.
115g (including batteries)
Low battery indication Real time clock and temperature display customer
