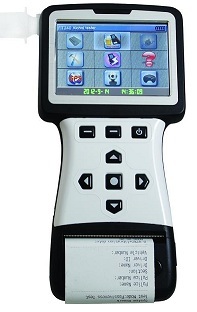

Alcohol Breath Analyzer Inbuilt Printer PT-240P

Alcohol Breath Analyzer Inbuilt Printer PT-240P
Alcohol Breath Analyzer Inbuilt Printer PT-240P
Send Inquiry
Product Code : PT-240P
Brand Name : Mangal
Product Description

 1. product description:

Law Enforcement Alcohol Tester with Electrochemical / Fuel Cell Sensor

2. Built in thermal printer:

Heat transfer printer (wireless dot matrix option)

3. Display:

Big 3.5" (320*480) touch screen LCD with graphic waveform animation

4. Navigating key input:

Navigating key input with Touch Panel

5. Quick and precise analysis:

Ensure a high sensitivity to alcohol and stable & reliable working life.

6. Easy to read:

Waveform graphic display

7. Data download:

PC down via USB port.

8. Mouthpiece:

Easy to replace a new mouthpiece by pressing a key, very convenient and hygiene.

9. Power Supply:

Rechargeable 7.4V Li-ion battery

10. Heat warm up:

Chamber & Sensor warm up automatically

11. Auto flow monitoring:

Flow detect automatically

12. Unit setting:


13. Display range:

0~0.4% BAC or 0~4.0‰BAC or 0~2.0mg/l

14. Long Term Storage condition:

Temperature: 0 Degree C to +55 Degree C..

Humidity: 30 to 90% RH

15. Operating Temperature:

From -20℃ to +45 ℃, ( 5℃ to +40 ℃ for optimum operation)

16. Memories:

Min. 50,000 memories with full information:- Drive name, vehicle no., inspector name, test result with time stamp, date and time, location, instrument no., Calibration date, test no. etc…

17. Measurement precision:

Standard deviation +/–0.025 mg/L or +/–5 % of the measurement Drift: typically < 0.8 % of the measurement value/month

18. Alert level setting:

Set “drunk driving” and “driving while intoxicated” by a supervisor password.

19. Data management software:

Can export the files as Microsoft Excel documents directly.

20. Advanced self-calibration:

Manually parameters adjust available

21. Standard:

Certified GB/T 21254-2007; CE; Compile with S&E, AS, NF, DOT, OIML126
